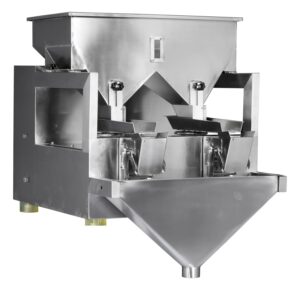

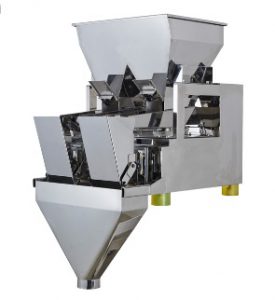

ATO-WL2H80 Two Heads Linear Weigher
Application
Features
Specification
More
Application
It is suitable for weighing slice, roll or regular shape products such as sugar, salt, seed, rice, sesame, glutamate, milk powder, coffee powder and seasoning powder, etc. Each bucket could weigh up to 5kg wide applicable range for most product
Features
- Two Head with 8000mm Capacity to each Hopper
- PLC + Touch screen control system
- Step Motor Driving System
- Program Memory up to 10
- Self-learning Software, no boring setting
- Food-grade SUS304 Contact Parts
- Unique Design with Dribble Feed Gate
- Tool-free and Quick to Remove for cleaning
- Different administrator levels management;
- PLC + Touch screen control system;
- Different administrator levels management;
- PLC + Touch screen control system;
- Different administrator levels management;
- PLC + Touch screen control system;
- Different administrator levels management
- Free parameter adjusting during running
Option
- Front Plastic Enclosures
- Foot Actuation Switch
- Dimple Plated Surface
- Larger Capacity Hopper
- Pneumatic Air Cylinder Fine Flap
Specification
| Model | ATO-WL-2H80 |
| Heads Number | 2-head (Optional) |
| Hopper Capacity | 8000ml |
| Filling Range | 100 ~ 5000g |
| Filling Speed | 5 ~ 10bags/min |
| Filling Accuracy | 0.1 ~ 5g |
| Driving System | Step Motor |
| Control System | PLC+Touch Screen |
| Building Materials | SUS304 stainless steel |
More
Also available 3 liter weigh hopper model.
