linear weigher

Your packaging system supplier

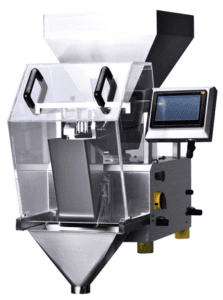

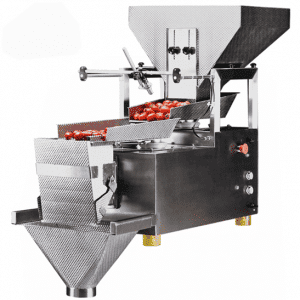

ATO-WL1H30 One Head Linear Weigher

ATO WL1H30 One Head Weigher

Generally weighing / filling granules, rice, salt, sugar, snack foods, pet foods, dried foods, nuts and pulses, Potato Chips, tea and coffee nuts, food additives, dried fruit, grains, sesame, fertilizer, feed, fodder,etc.

Linear Scale Product

  • Full 304SUS building material;
  • Hopper Capacity 3000ml
  • Compact design with small footprint;
  • Tool-free install, dismantle and clean;
  • Auto learning model for easy-fool operation;
  • Coarse and fine feeding material control;
  • New generation PLUG-TO-RUN run mode;
  • MCU + Touch screen control system;
  • Free parameter adjusting during running;
  • Self R&D interchangeable main PCB board control;
  • Independent Modular Controlling, easy for maintenance
  • Up to 10 product recipes preset;

OPTIONS

  • In-feed bulk material conveyor
  • Front protection glass enclosure
  • Support gantry/stand
  • Various size dump chute outlet
  • Enlarge size in-feed bunker
  • Linear feeder fine flap driven by motor
  • 316SUS food contacting parts
ModelATO-WL-1H30
Heads No.1
Weighing Range10 -1500g
Accuracy0.1 – 2g
Max. Speed1 – 12Bags/min
Weigh Hopper Capacity3000ml
In-feed Loading Hopper50L
Control SystemMCU+ Touch Screen
Preset Recipes10
Max. Mixed Products1
Power SupplyAC220V ±10% 50Hz, 1Phase

Also available 5 liter weigh hopper capacity model.

ATO WL1H50 One Head Weigher
