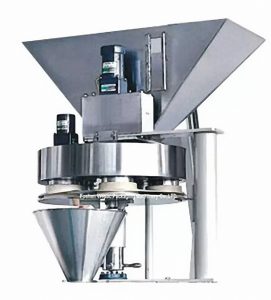

ATO-WC VOLUMETRIC CUP FILLER
Application
Features
Specification
Application
ATO-WC volumetric cup filler suits for small granule good flowing products packing, such as bean, rice, sugar, salt, sesame, seed, ice cube, pet food, etc.
Features
- SS 304 Frame, with hydraulic elevator, meets GMP request, also for some corrosive powder
- Compact system, stable and durable
- Easy operation and clean
- Low noise, maintenance free Servo motor driven
- High precision, fast, strong torque, long life, speed adjustable
- Air proof hopper, dust proof with easy cleaning
- Discharge gate with dust collector
- Free tool open the material loading hopper/chamber
Specification
Model | ATO-WC800W4 | ATO-WC2000W5 |
Filling Cup Qty | 4 cups | 5 cups |
Output Turning Speed | 0~20r/min | 0~16r/min |
Filling Type | retractable door/straight filling | retractable door/straight filling |
Plate Diameter | 380mm | 560mm |
Hopper Volume | 100L | 100L |
Cup Weighing Range | 10~800ml | 30~2000ml |
Accuracy | ≤±0.4% | ≤±0.5% |
Max. Packing Speed | 80bags/min | 70bags/min |
Cup Volume Adjustment | 1.65 times | 1.65 times |
Machine Weight | 80KG | 110KG |
