MULTIHEAD WEIGHER

Your packaging system supplier

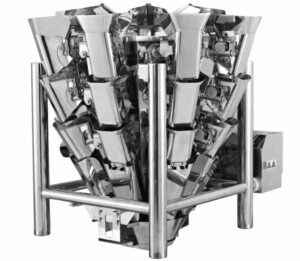

ATO-W6-8L3 Tri-level with Memory Hopper Multihead Weigher

  • Tri-level design with memory hopper ,Increase the numbers of available combinations, 64 times more combinations than common 10 heads weigher
  • speed up to 85bpm with only eight weighing heads
  • CAN bus infrastructure
  • Individually adjust radial feeder ,don not need to stop production in case of any failure in feeder ,motor or load
  • Waiting for service while lock of products on the top
  • Product feeding level controlled by weight detection or optical sensor
  • PMW control in all feeders
  • Smooth vibration in 50Hz or 60Hz power supply
ModelATO-W6-8L3
Weighing Range20-2000 g
Bucket Volume2000 ml
Maximum SpeedUp to 85 bags /minute **
Accuracy0.3 – 1.0g (10 ~1000 g) 0.6 – 2.0g (1000 ~2000 g)
ProtectionIP64  (IP65 for option)
Display10.4 ” color TFT LCD Touch Screen
Pre-set Program99 types of products (maximum)
Number of Weighing Cells8
Power SupplyAC220-240V, 50/60Hz, 1 phase or Per customer specification
Power Consumption2KW
Operating Temperature0 – 40 ° C
Dimension1400*1200*1880mm
Machine Weight450 kg


Also available more models such as  16 heads, 18 heads, 24 heads and 30 heads. can run up to 5 different kind of product with one weigher. please contact with us for more information.
