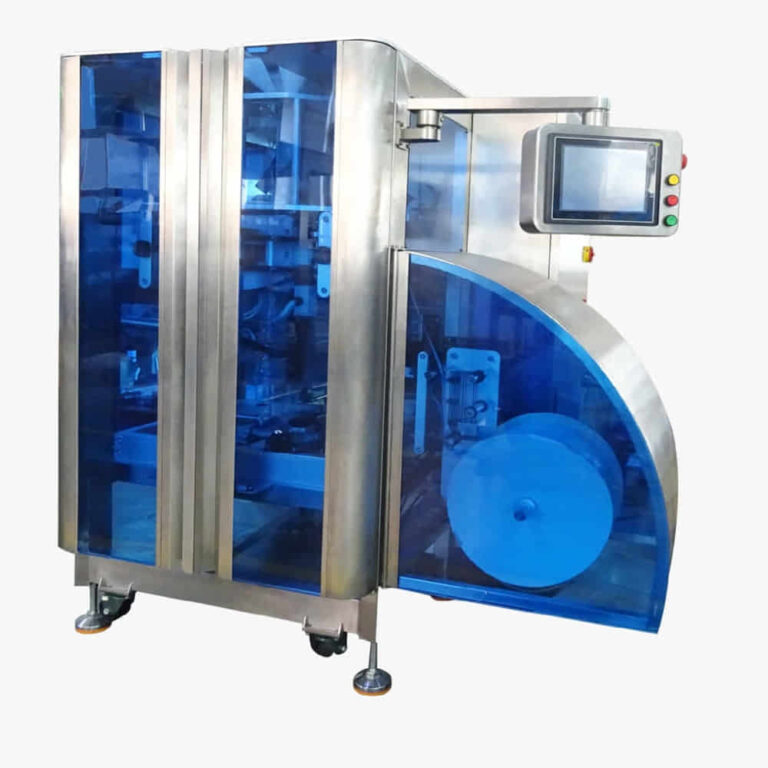

ATO-PVZ Vertical Form Fill Seal (VFFS) Stand up With Zipper Packaging Machines
Features
Specification
Features
- SS 304 Frame
- PLC control, touch screen HIM, easy to operate and maintain
- Servo motor pulls film for accurate positioning.
- Horizontal Sealing Driven by Servo motor, smooth and low noise.
- Horizontal, vertical temperature control, suitable for various of film.
Specification
| Model | ATO-PVZ520 | ATO-PVZ720 |
| Max Width of Film | 520mm | 720mm |
| Bag Length | 100-235 mm(L) | 100-335 mm(L) |
| Bag Width | 50-200 mm(W) | 50-300 mm(W) |
| Bag Bottom Width | 30-60 mm | 40-100 mm |
| Packing Speed | 5-40bags/min | 5-40bags/min |
| Air consumption | 0.6-0.8 Mpa | 0.6-0.8 Mpa |
| Gas consumption | 0.4m3/min | 0.6m3/min |
| Power Supply | AC 220V 50/60Hz 1P 5KW | AC 220V 50/60Hz 1P 6Kw |
| Dimension | 2015mm(L)*1650mm(W) *1910mm (H) | 2150mm(L)*1710mm(W) *2040mm (H) |
| Weight | 550 kg | 700 kg |
