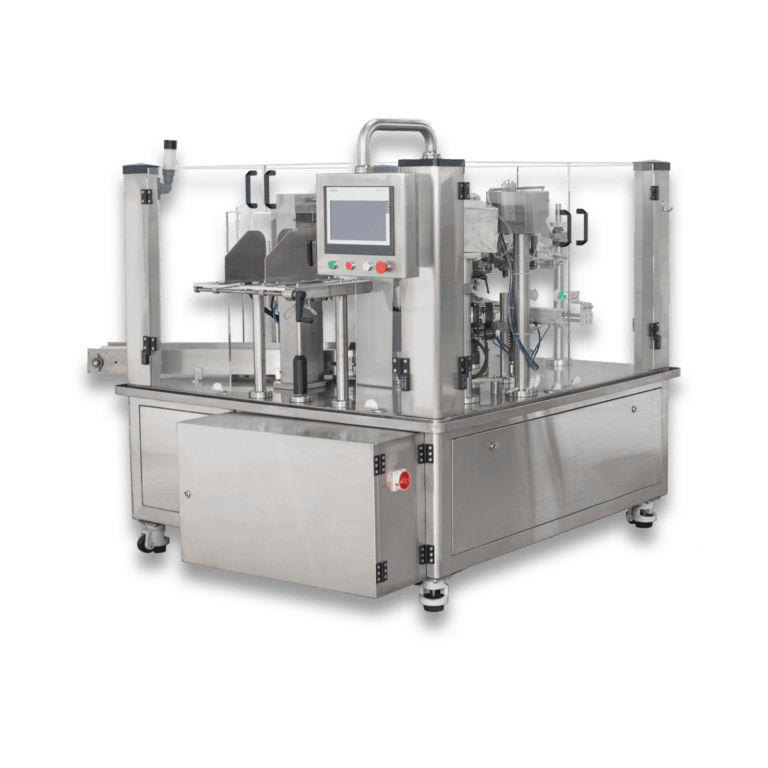

ATO-PMR08H-240 Premade Pouch Rotary Packing Machine
Features
Specification
Features
- Siemens PLC and 10” touch screen
- Washing down SAE 304 stainless steel frame
- Automatic grease lubricating system
- Adjust gripper width on the screen
- Low noise vacuum system with pollution free
- “No filling, No sealing” to save products and materials
Option:
- Nitrogen Flush,
- Vacuum Pouch,
- Multi-Filling,
- Spout Pouch (Conner or Center),
- Zip Pouch
- Verify weight in weighing station
- with vacuum rotary packaging machine with rotary vacuum chamber
Specification
| Bag Style | Flat Pouch, Doypack Pouch, * Zip Pouch * Spout Pouch |
| Bag Size | Width：80-240 mm Length：100-300mm |
| Pouch Material | Laminated Film |
| Heat Seal | Uniform Heat Sealing Method |
| Sealing Temperature Control | PID, Via Touch Screen 0℃-200℃ |
| Cool Seal | Press Bar With Emboss At Sealing |
| Speed | Up to 50 Bags/Min * |
| Frame | SAE 304 Stainless Steel |
| Coding (Optional | Embossing / Inkjet Printer /Thermal Transfer Printer/ Hot Stamping Printer |
| Power Supply | 110V, 50/60HZ, 1P, 4 KW |
| Compressed Air | 750 Nl / Min, 0.6Mpa |
| Machine Net Weight | Around 1,800kg |
*Depending on the characteristics of the product, the amount of filling and the condition of the bag, etc.
