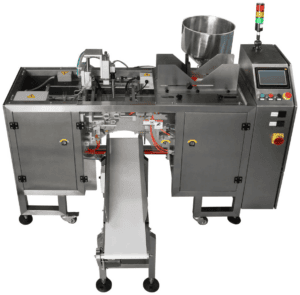

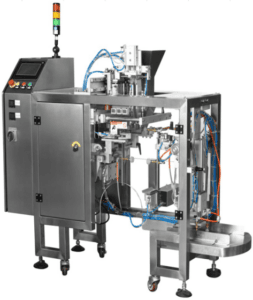

ATO-PM-300 Mini Doypack Pouch Packing Machine
Application
Features
Specification
More
Application
Granules, pieces, powder, liquid, sauces, food and none food such as pet food, coffee bean, candy, coffee powder, flour, ketchup, shampoo and daily livings, etc.
Features
- New generation sanitary design & build
- Easy clean and avoid trash accumulated
- Compact footprint & Low Maintenance
- Auto Operation Control
- 7″ User’s friendly HMI, high efficiency performance
- Auto pouch detecting sensor, no pouch no dump ensure material splash down
- Automatic breakdown detection and solution is displayed on the screen clearly
- Various option functions are available as per request.
Option
- Auto zip-lock open device
- Hot stamp printer
- SMC pneumatic parts
- Product settler
- Gas-flush or vacuum function
- Filling devices
- Bag Feeding conveyor
Specification
| Model | ATO-PM-300 |
| Bag width | Standard Bag:100-300mm Zip-lcok Bag:130-300mm |
| Bag length | Standard Bag:100-350mm Zip-lcok Bag:130-350mm |
| Bag style | Standup Pouch, Reseal-able Pouch, Flat Bottom Pouch, 3 Side Seal Pouch, Zipper Pouch, Zip-lock Pouch,Top Zip Pouch, Heat Seal Pouch, Kraft Window-open Paper Pouch |
| Speed | Up to 15 BPM (based on bag and filling) |
| Power | 110V 50/60Hz Single phase 2KW |
| Air | 6kg/cm2 (0.5-0.6Mpa), 0.4CBM per minute |
| Construction | 304# Stainless Steel Frame |
More
Also available different model.
